In the competitive landscape of pharmaceuticals and functional foods, the "feel" and "efficacy" of a product are dictated by its molecular foundation. For R&D teams, selecting the correct Bloom strength for gelatin or the precise molecular weight (MW) for collagen peptides is not merely a procurement choice—it is a critical engineering decision.
At Beyond Biopharma, we specialize in bridging the gap between raw material science and finished product performance.
Gelatin's performance is defined by two primary variables: Bloom strength (the measure of gel stiffness) and viscosity. Balancing these determines the stability and sensory profile of the end product.
● Hard Capsules: Requires high-viscosity gelatin to create a resilient shell that meets strict disintegration standards. Low Bloom leads to sagging/deformation, while low viscosity results in brittle, thin walls.
● Gummy Candy: An ideal range is 180–260 Bloom paired with medium viscosity. This combination provides the signature "Q-bounce" (elasticity) and anti-deformation properties. High Bloom can optimize costs by reducing the required dosage, though excessive viscosity may cause mold-sticking issues.
● Meat Products: For hams, a high Bloom (180–250) and high viscosity are essential for water retention and slice integrity. Conversely, meat sauces require low Bloom and viscosity (120–160) to ensure a smooth, "melt-in-the-mouth" texture.

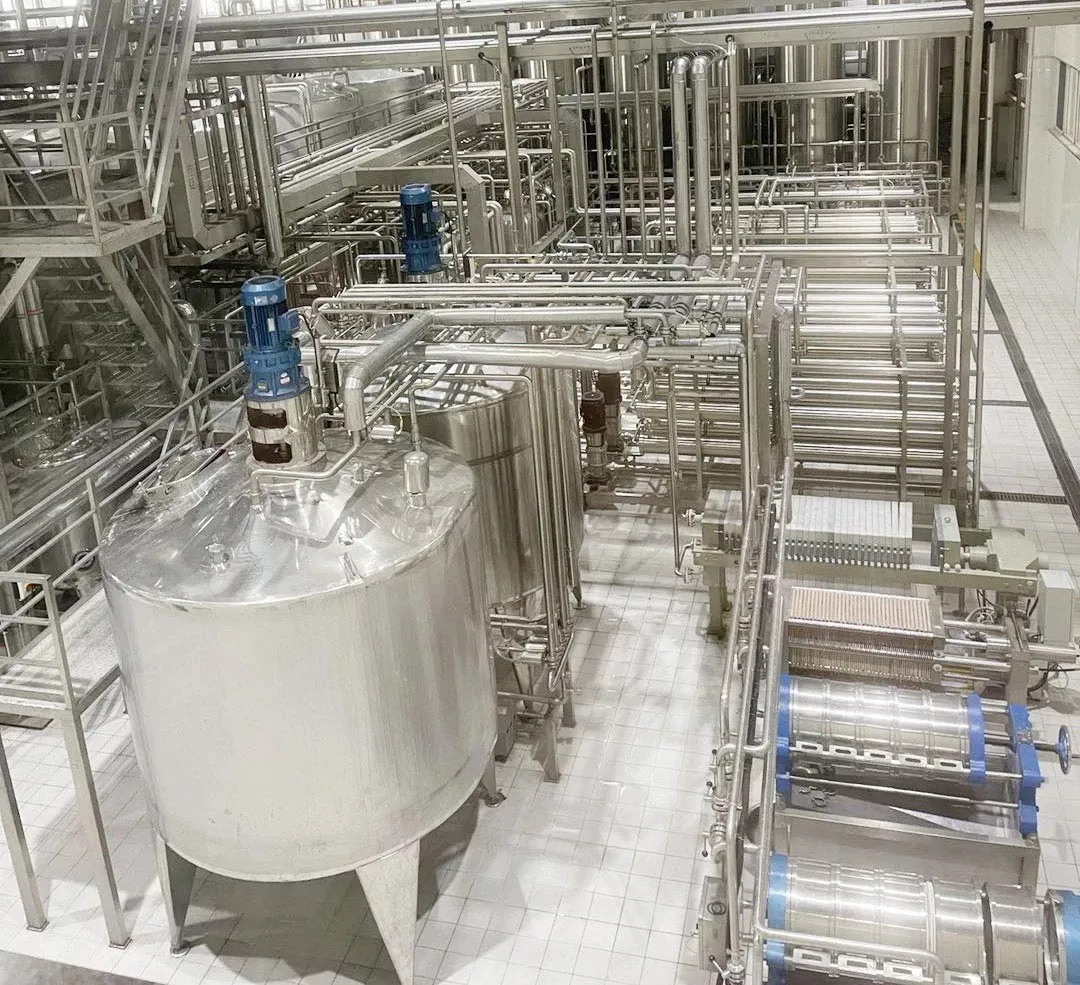

Bloom strength is essentially a "molecular map". High-strength gelatin relies on preserving high-molecular-weight components—specifically alpha-chains (approx. 100k Da) and beta-chains (approx. 200k Da). Our gentle extraction processes maximize these subunits to ensure a robust gel network.
%202.webp)
While gelatin provides structure, collagen peptides are prized for biological activity. The "Golden Rule" of bioavailability centers on a molecular weight of 1000–3000 Daltons.
● Optimal Absorption: Peptides in the 1000–3000 Da range can be directly transported via intestinal epithelial cells, reaching peak blood concentration within 2 hours.
● The Extremes: Molecules over 5000 Da suffer from slow decomposition and low utilization. Conversely, molecules under 500 Da risk degrading into simple amino acids, losing the specific bioactivity of the peptide chain.
The choice of source often dictates the market entry strategy:
● Fish Collagen: Naturally concentrated in the 1000–3000 Da range with faster absorption. It is the premier choice for the beauty market due to its low carbon footprint, lack of religious restrictions (Halal/Kosher), and zero BSE risk.
● Bovine Collagen: Rich in Type I and Type III collagen, making it highly compatible with human bone and joint structures. It is the standard for joint health and musculoskeletal recovery formulations.
A major pain point for R&D is the 10g high-dose sachet. Traditional powders at this dosage often suffer from clumping, slow dissolution, and cloudy solutions.
Beyond Biopharma’s Technical Breakthrough:
● MW Optimization: We utilize deep-sea fish collagen peptides with a MW of < 1500 Da to prevent molecular aggregation.
● Instant-Solubilization Technology: Through optimized granulation, we achieve 10-second cold-water solubility without the need for heating or vigorous stirring.
● Sensory Neutrality: The resulting solution remains clear, with high whiteness and minimal "fishy" odor, ensuring a premium user experience.
Whether you are formulating a high-dose beauty shot or a pharmaceutical-grade hard capsule, the molecular specifications of your ingredients will determine your success. Beyond Biopharma is more than a manufacturer; we are your technical partner in gelatin and collagen innovation.
Ready to optimize your formulation?
[Contact our Technical Team] to request a TDS/COA or a custom sample for your next R&D project.
